PVC Table Duct With Male Thread

With fittings made of PVC, the so-called PVC fittings, piping of aquariums or entire systems can be realized without any problems. The different fittings are matched to each other and therefore fit together perfectly. In addition to elbows, pipes and bends, there are various screw joints and threaded pieces available for the permanent connection of pumps and filters. The individual parts are permanently joined together with PVC adhesive.

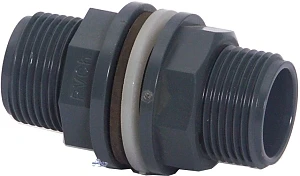

PVC Table Duct with male threadThe tank fitting represents the connection of the aquarium to the pipe system. On both sides there is a male thread and an adhesive sleeve. The aquarium connector is supplied complete with plastic washer and sealing ring. The connection is made of injection molding and pressure resistant up to 16 bar.

iavailable in the following sizes:
20 mm x 3/4 inch
25 mm x 1 inch
32 mm x 1 1/4 inch
40 mm x 1 3/4 inch
50 mm x 2 inch
50 mm x 2 1/4 inch
63 mm x 2 1/2 inch
75 mm x 3 inch
90 mm x 4 inch



	Table duct B
Size d1 d2 d3 Z1 Z2 B C D S 20×3/4″ 20 mm 3/4″ 3/4″ 13 mm 0-23 mm 16 mm 17 mm 42 mm 32 mm 25×1″ 25 mm 1″ 1″ 15 mm 0-23 mm 19 mm 21 mm 45 mm 40 mm 32×1 1/4″ 32 mm 1 1/4″ 1 1/4″ 17 mm 0-24 mm 22 mm 23 mm 47 mm 50 mm 40x 1 3/4″ 40 mm 1 1/2″ 1 3/4″ 19 mm 0-21 mm 26 mm 23 mm 48 mm 60 mm 50×2″ 50 mm 2″ 2″ 21 mm 0-21 mm 31 mm 27 mm 52 mm 69 mm 50×2 1/4″ 50 mm 2″ 2 1/4″ 21 mm 0-21 mm 31 mm 27 mm 52 mm 76 mm 63×2 1/2″ 63 mm 2 1/2″ 2 1/2″ 23 mm 0-23 mm 38 mm 31 mm 53 mm 85 mm 75×3″ 75 mm 3″ 3″ 26 mm 0-26 mm 44 mm 34 mm 56 mm 100 mm 90×4″ 90 mm 4″ M113 32 mm 0-32 mm 51 mm 40 mm 62 mm 125 mm
For the processing you need
